At TSRW, we believe technical complexity should never limit architectural creativity. Our digital toolkit is designed to integrate seamlessly into your drafting workflow, providing BIM-ready assets and detailed sectional blocks.
Reference Library
Structural details and installation specifications for diverse roofing applications. Click to preview and download individual details.

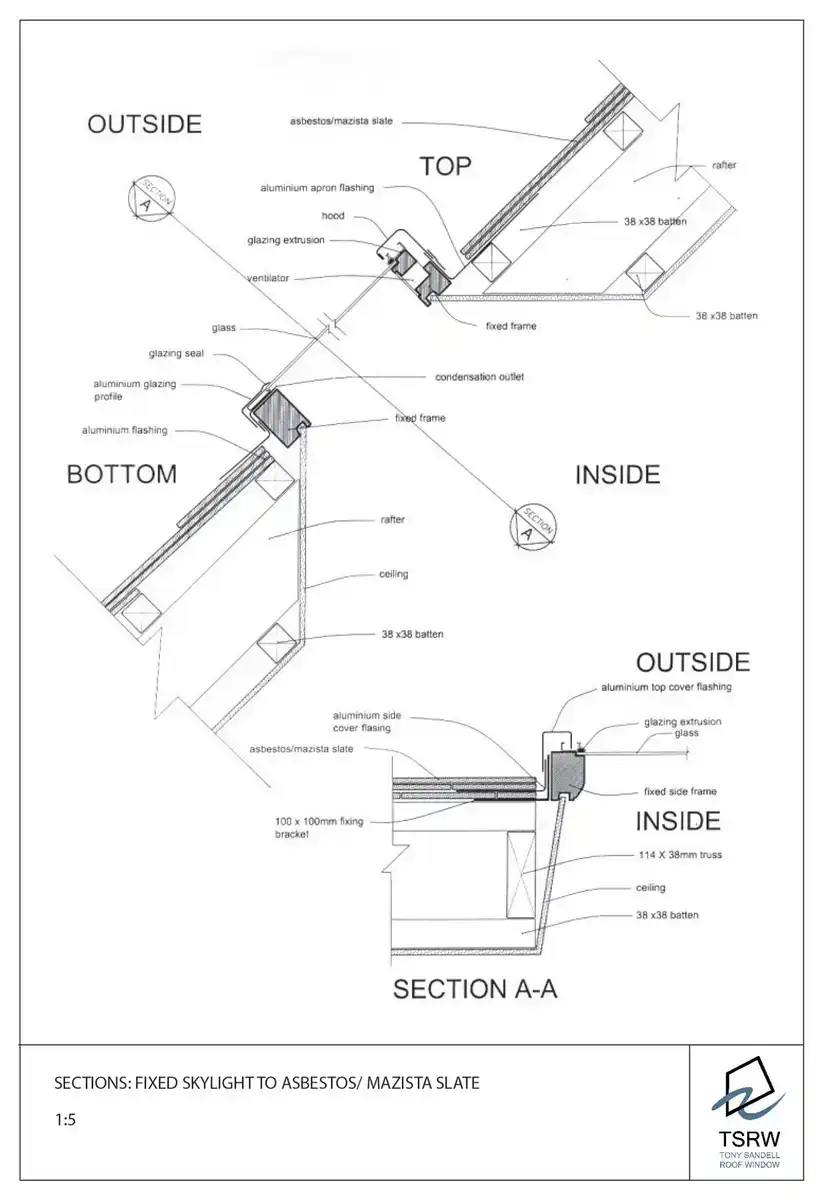

Fixed SK to asbestos mazista slate
Sectional detail
↓

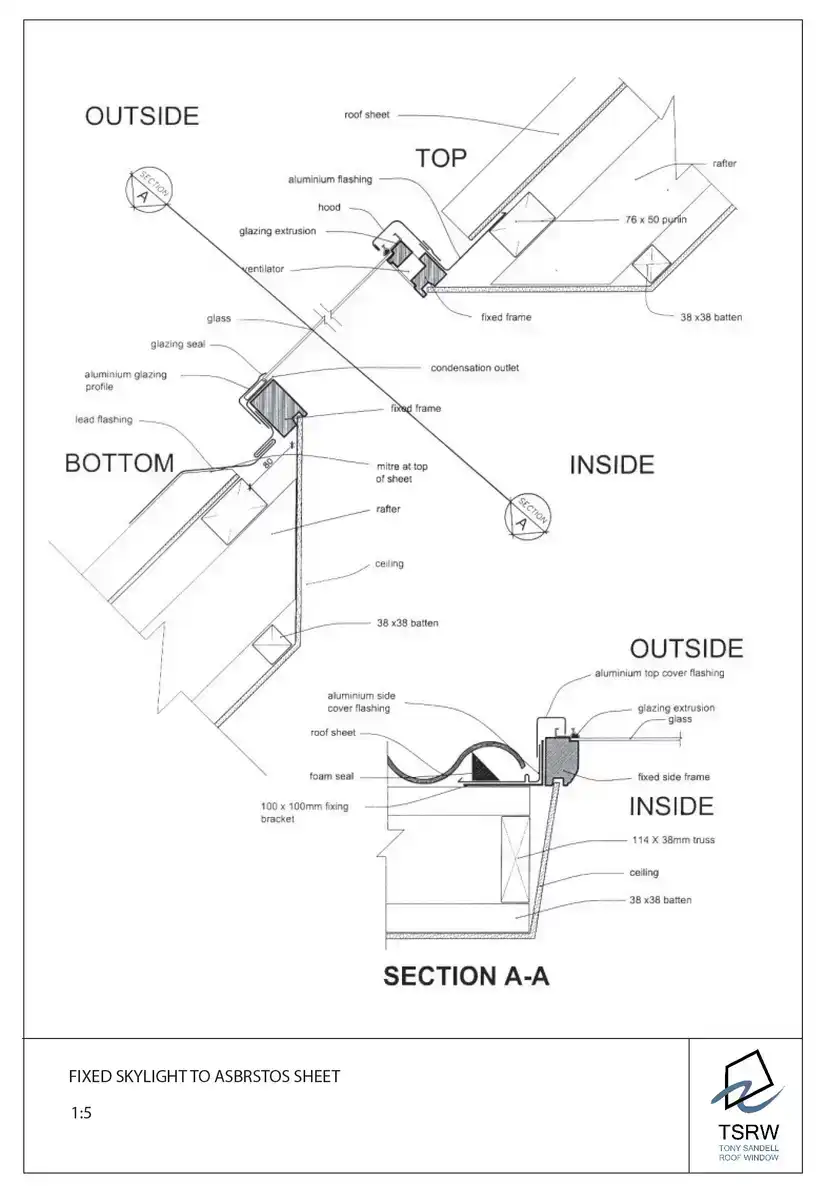

Fixed SK to asbestos sheet
Sectional detail
↓

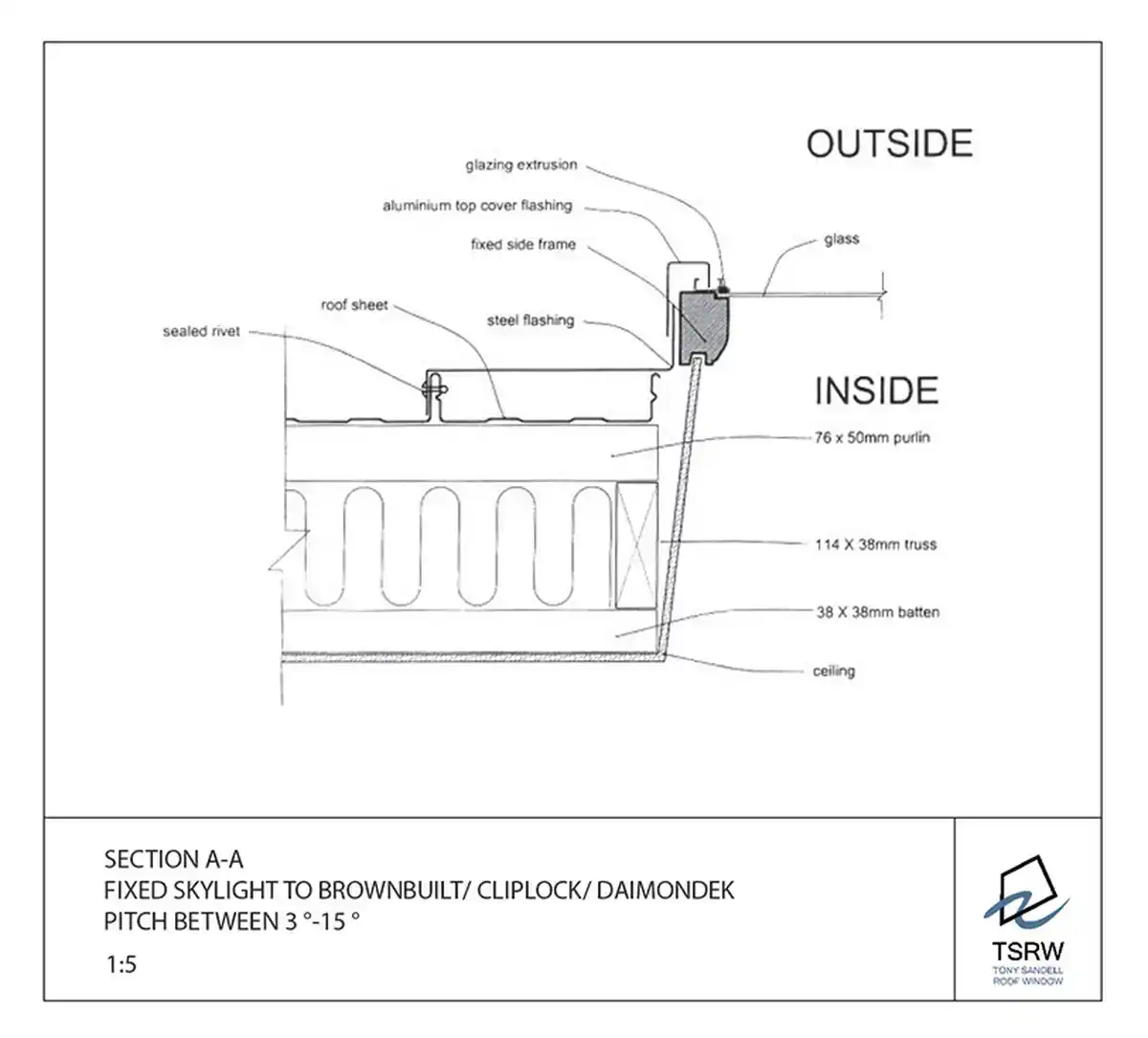

Fixed SK to brown built
Sectional detail
↓

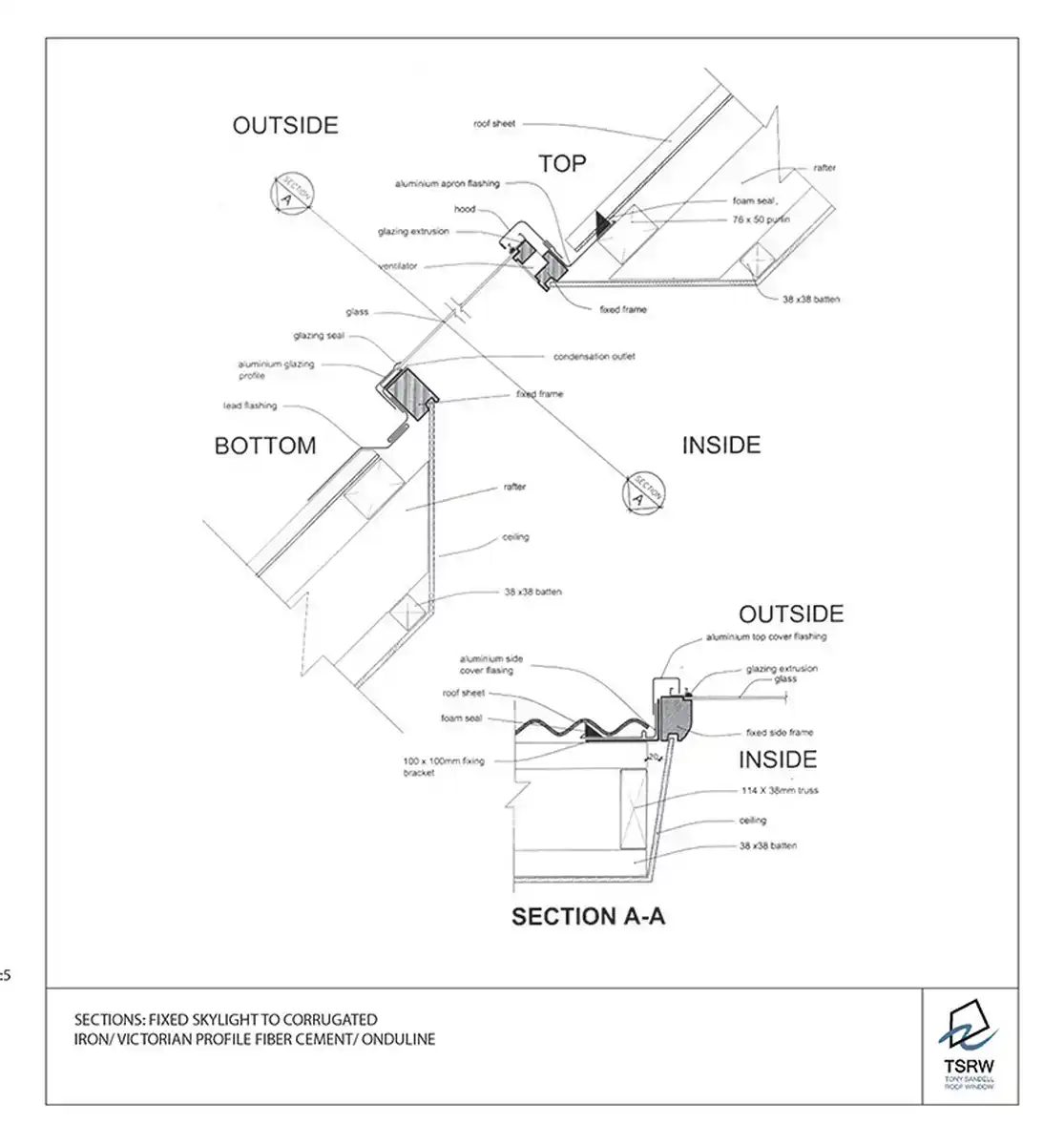

Fixed SK to corrugated victorian
Sectional detail
↓

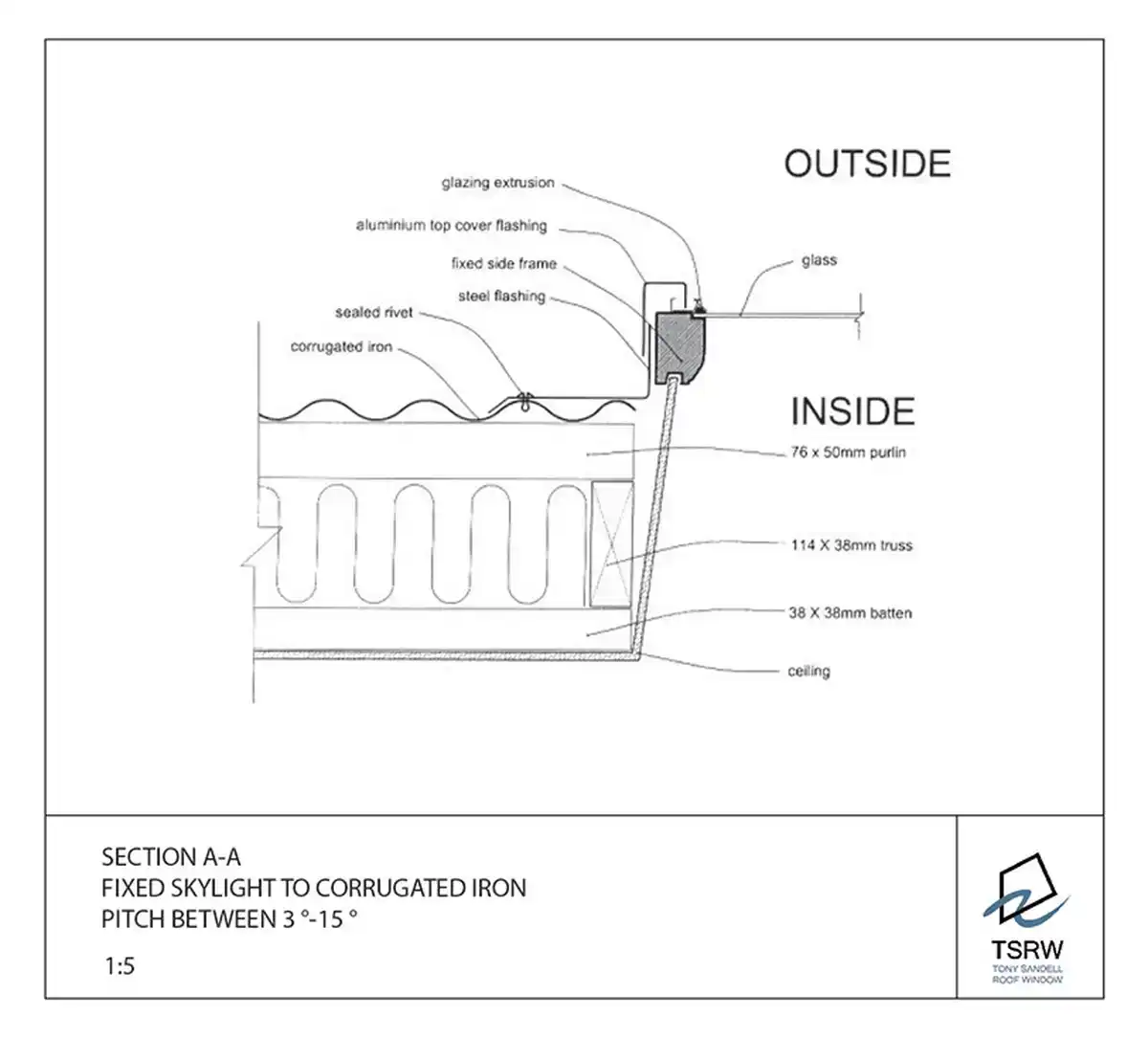

Fixed SK to corrugated iron
Sectional detail
↓

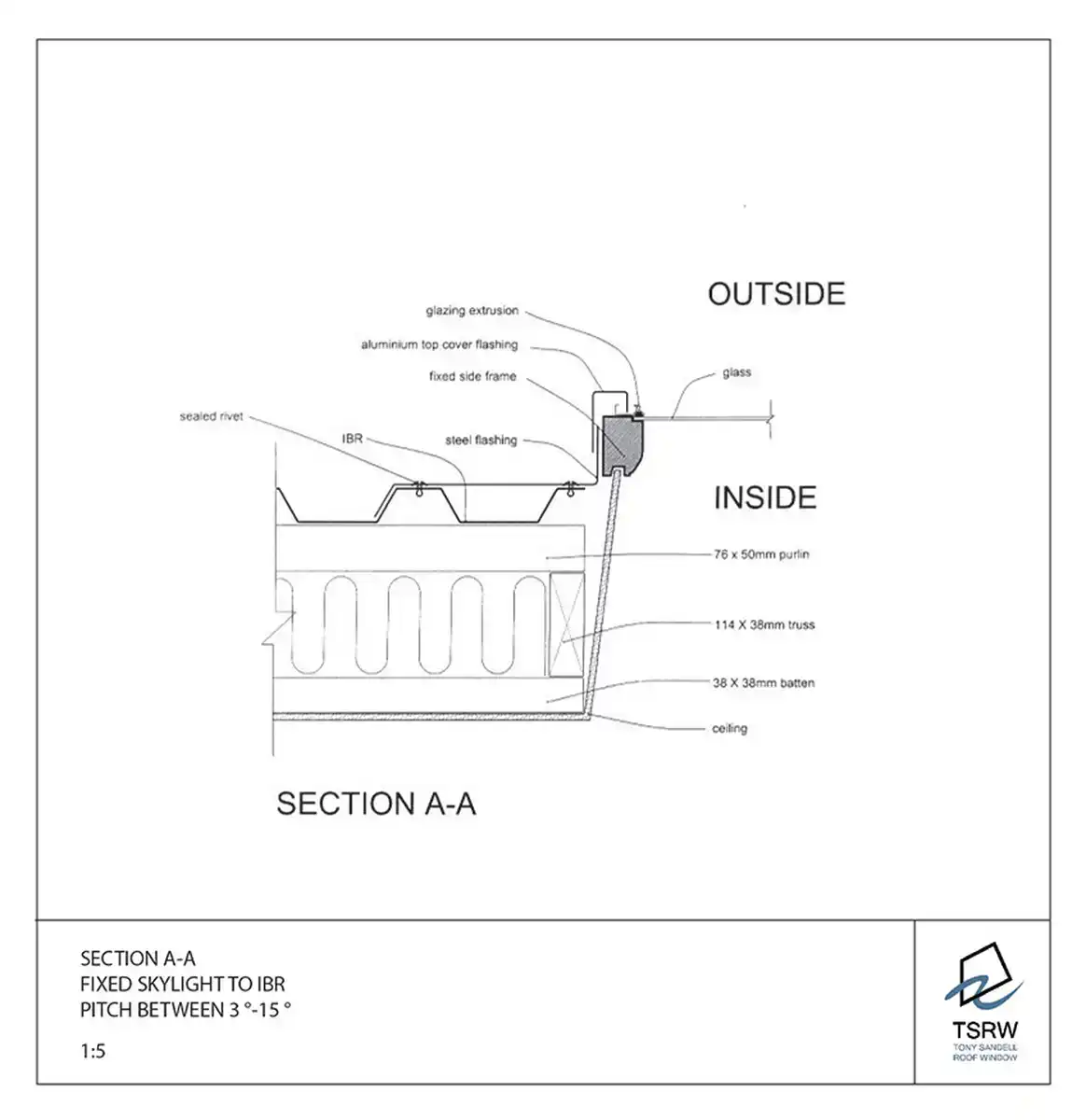

Fixed SK to IBR
Sectional detail
↓

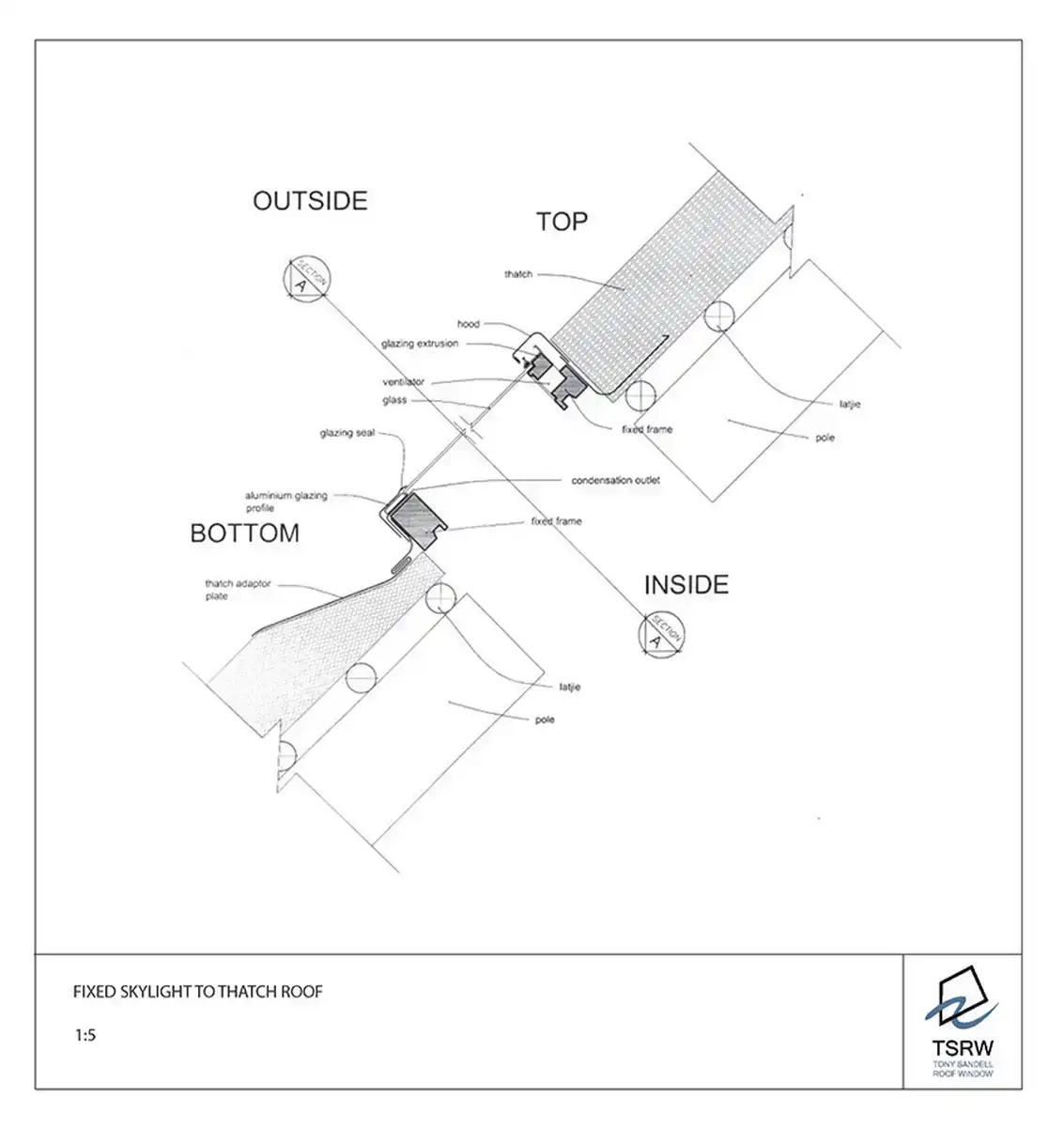

Fixed SK to thatch
Sectional detail
↓

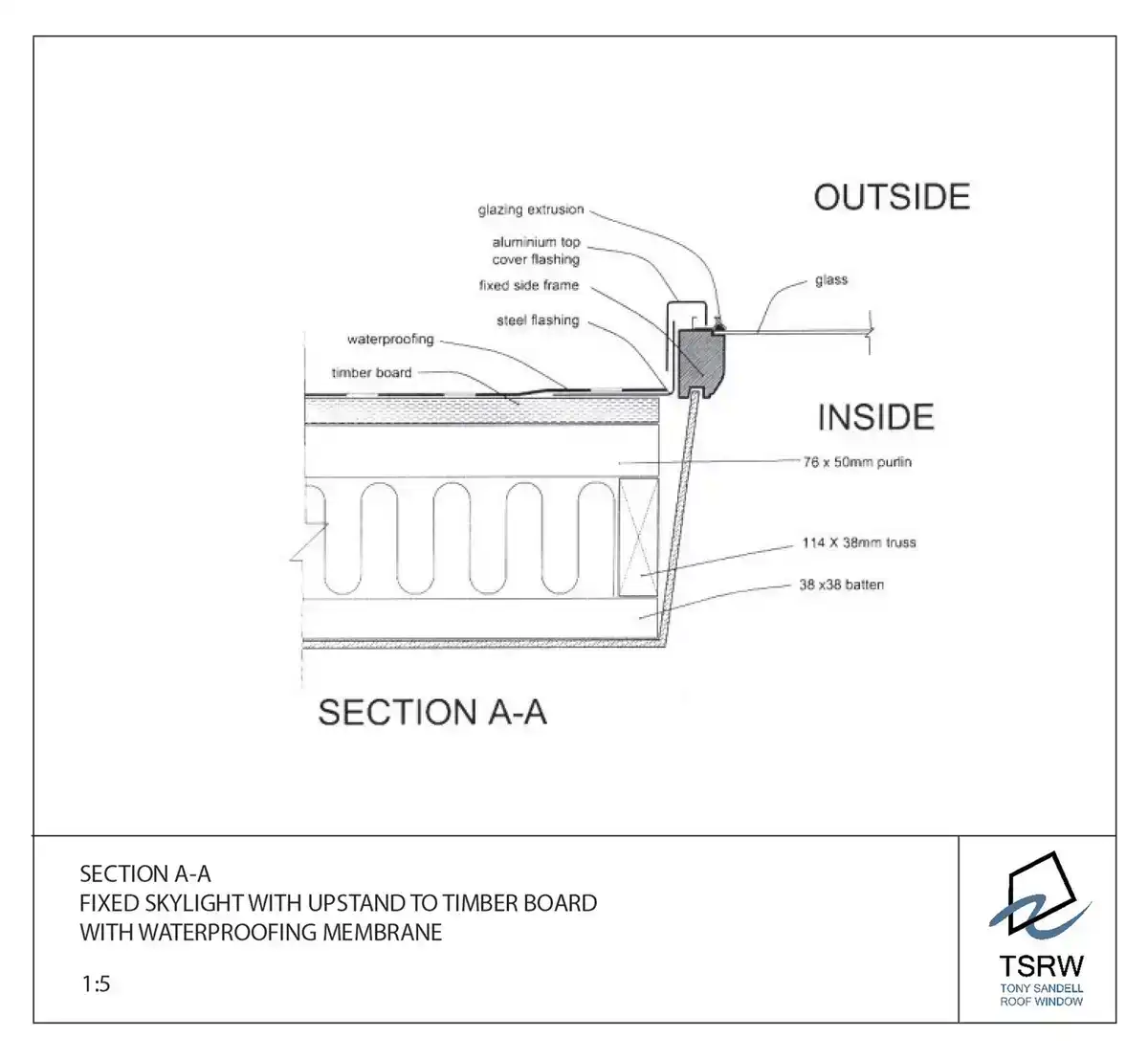

SK with upstand to timber board
Structural
↓

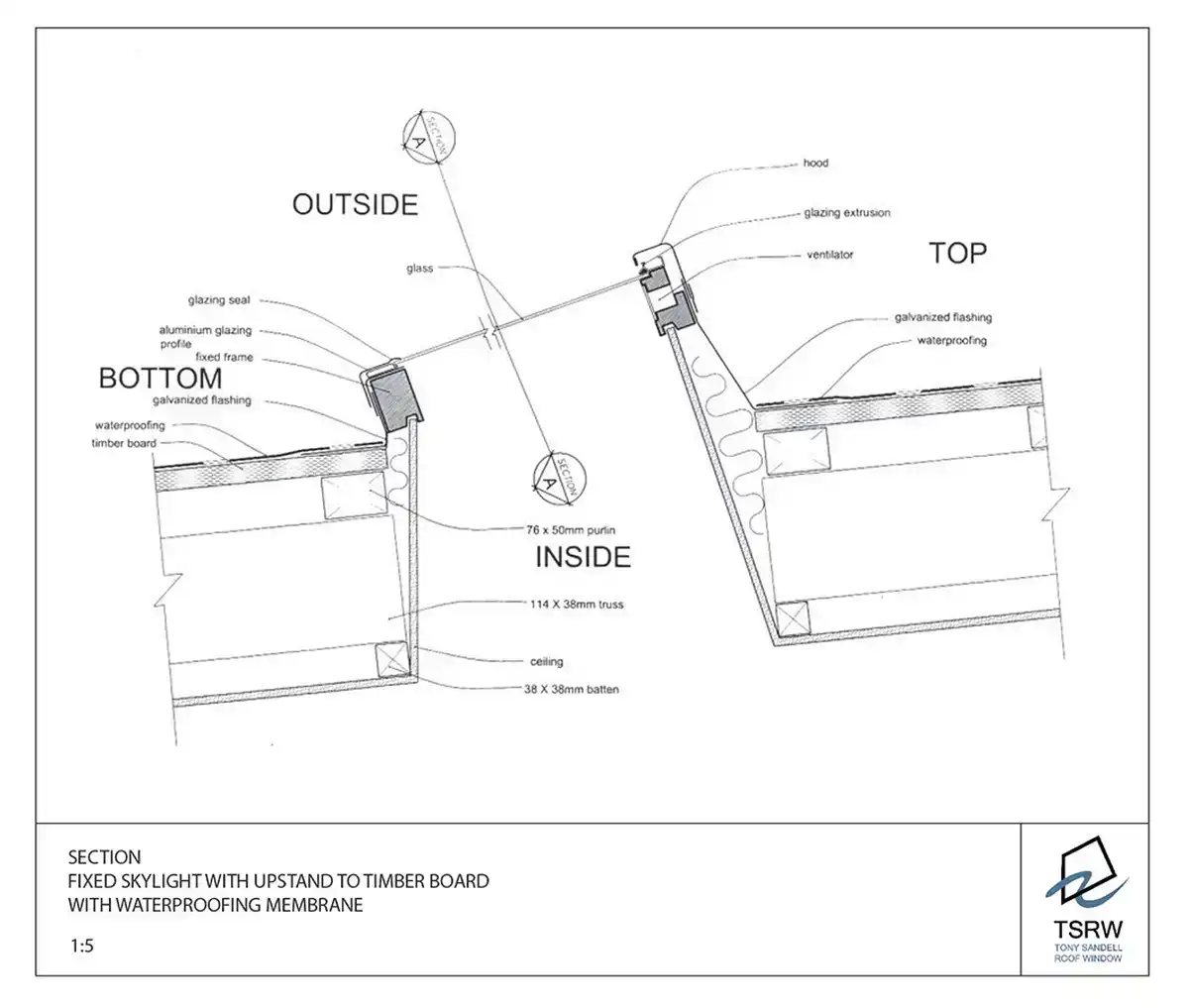

Fixed SK with upstand to timber
Structural
↓

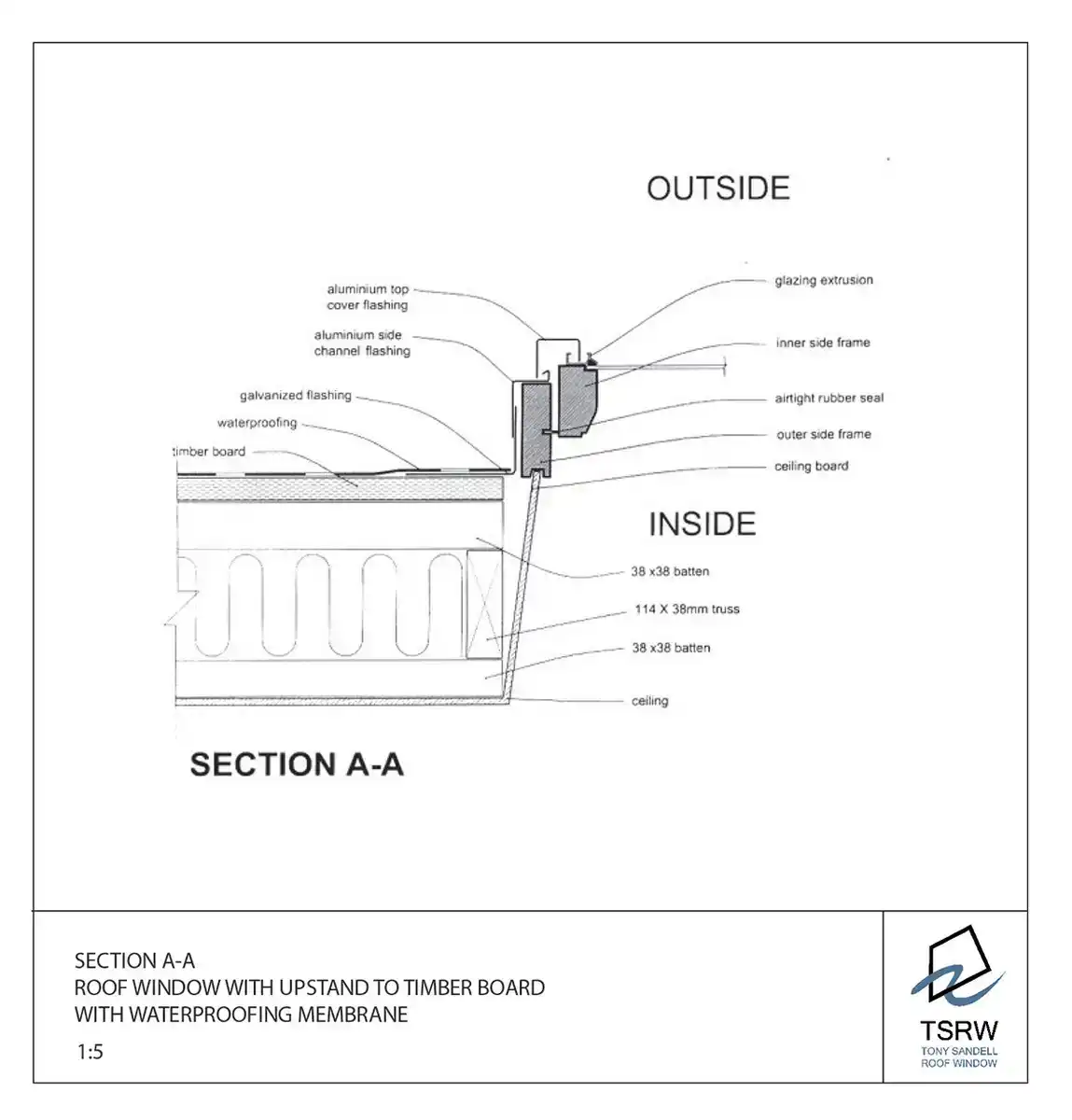

RW with upstand to timber board
Structural
↓

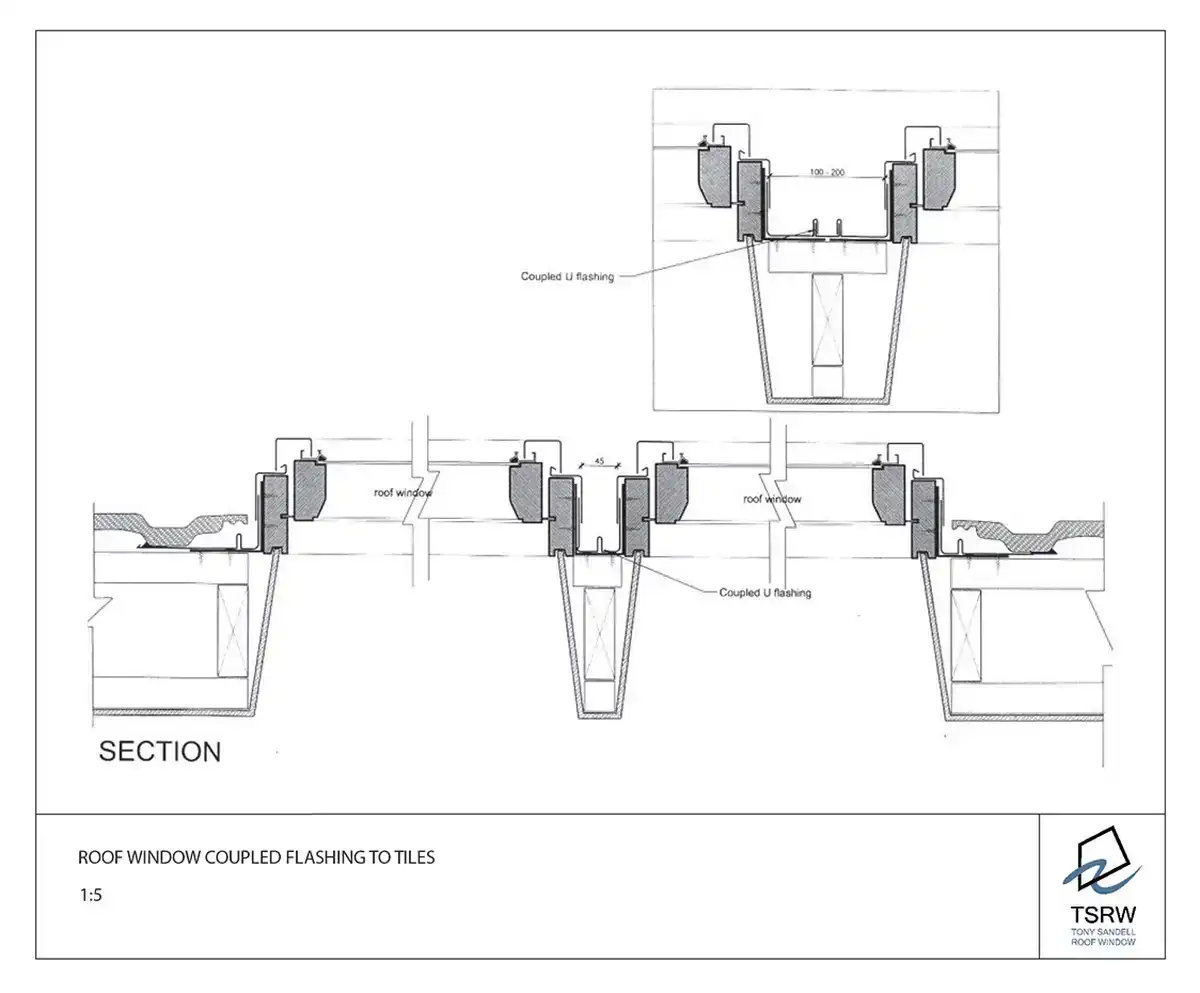

RW coupled flashing to tiles
Flashing
↓

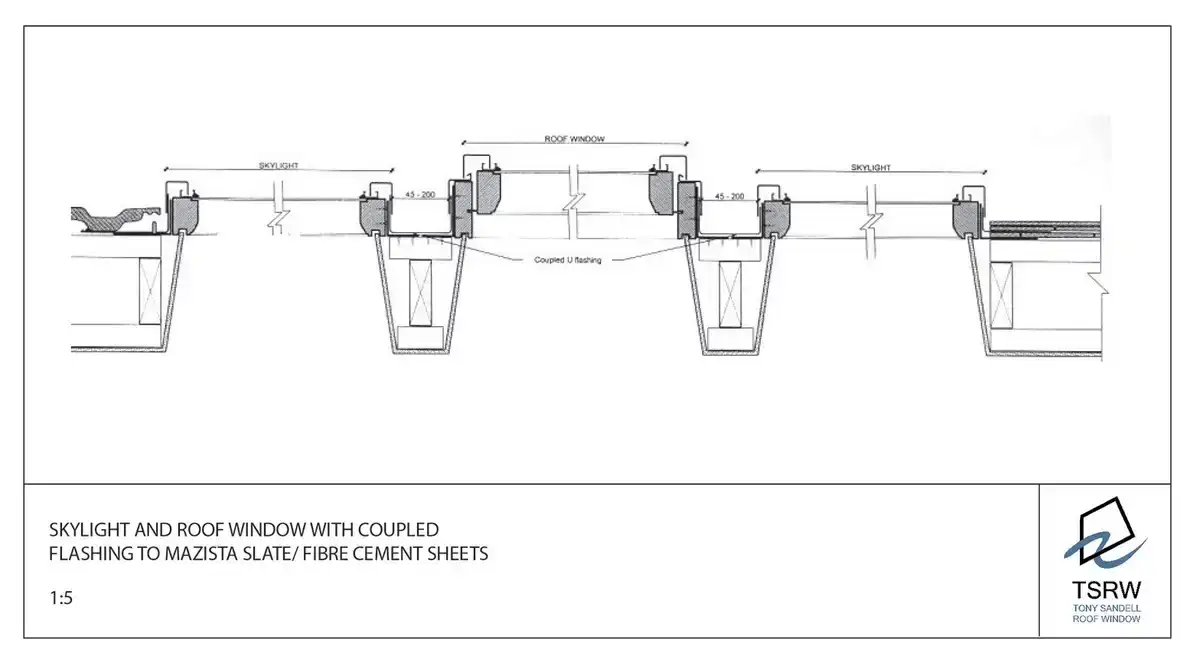

SK & RW coupled mazista slate
Flashing
↓

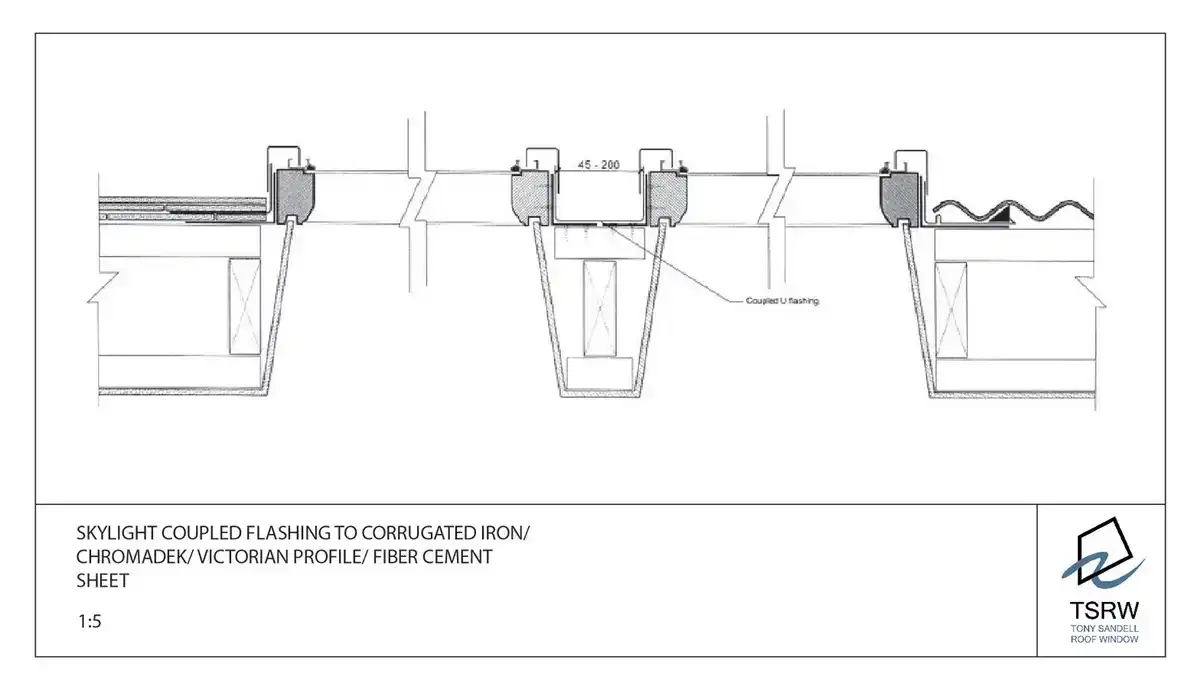

SK coupled to corrugated iron
Flashing
↓

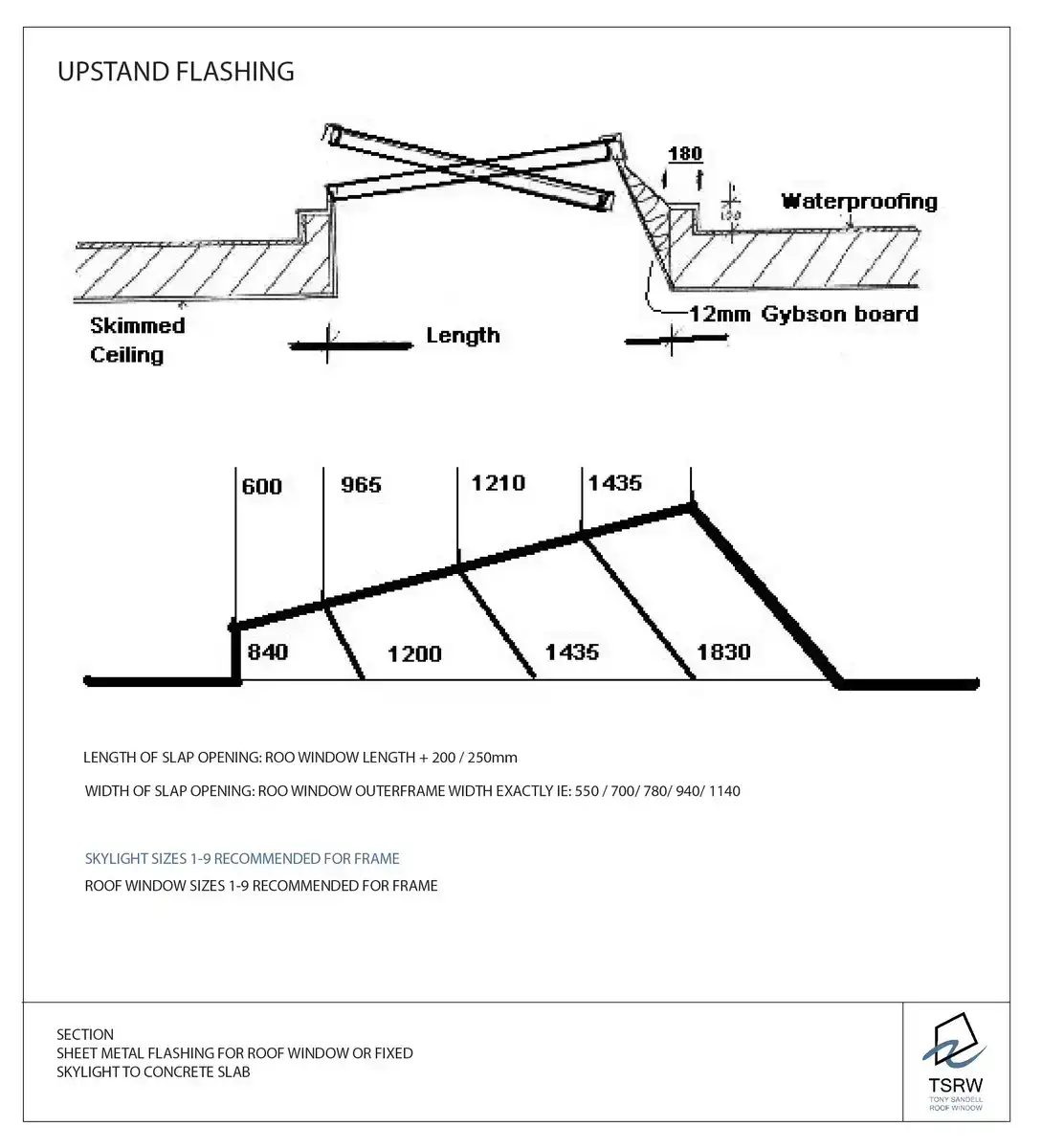

Upstand flashing detail
Flashing
↓
Consultation
Custom Project Briefing
Have a specific structural challenge or a bespoke glazing requirement? Use the form to provide project details, and our technical team will assist with custom sectional details.
